pH Redox controller
Automatic pH and Redox potential regulator with integrated dosing pump
Specifications
PH-REDOX CONTROLLER
This automatic pH and ORP regulator for pools incorporates multiple features designed to offer precision, reliability and ease of use:
- Autonomous pH and Redox potential regulator.
- Integrated dosing pump with transparent peristaltic head.
- Interchangeable head without screws.
- Variable speed motor for precise dosing.
- Continuous and proportional dosing.

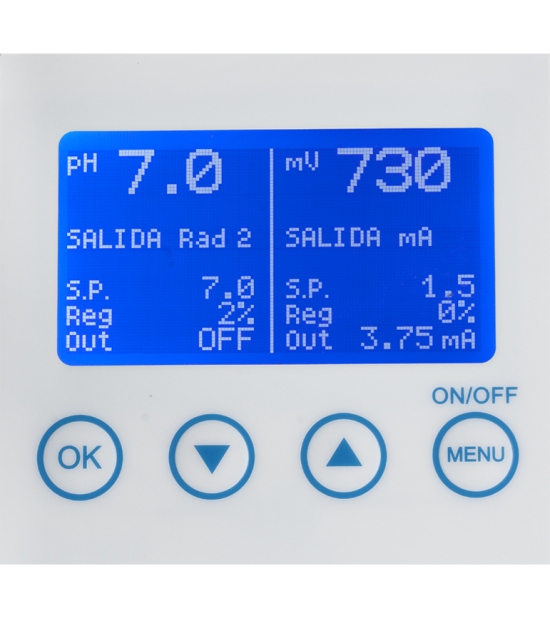

- LCD screen with intuitive menu and simple calibration.
- Programmable dosing alarm and delayed start.
- Control output via voltage-free contact.
- Programmable output ON/OFF or proportional signal (PWM).
- Wireless communication with Innowater systems (optional).
- Modbus communication for integration with control systems (optional).
- Internet connection via monitoring platform.
(optional)
These functions enable complete automatic control of water treatment, improving the efficiency of the disinfection system.
Technical Features
PH-REDOX CONTROLLER
Thanks to its integrated dosing pump and intelligent control technology, the system allows precise adjustment of water parameters, ensuring optimal, safe and healthy water quality in both private pools and public facilities.
| pH scale | 0 – 14 pH |
| pH resolution | 0,01 pH |
| pH calibration | Two points pH4 and pH>7 |
| Pump regulation | Variable speed |
| Maximum flow rate | 1,5 l/h a 1,5 bar |
| Maximum suction height | 1,5 m |
| Peristaltic tube | Santoprene® |
| Suction tube | PVC cristal 4×6 mm |
| Injection tube | PP 4×6 mm |
| Redox scale | 0 a 1.000 mV |
| Redox resolution | 1 mV |
| Redox calibration | 1 point |
| Probe input connector | BNC |
| Power supply voltage | 100-240 VAC, 50-60 Hz |
| Power consumption | 20W |
| Weight | 300 g |
| Dimensions | 220 x 130 x 85 mm |
Included elements
PH-REDOX CONTROLLER
The pH-Redox controller includes all components necessary for its installation and commissioning:
- Control panel with integrated peristaltic pump.
- pH probe.
- Redox (ORP) probe.
- Acid suction tube.
- Acid injection tube.
- Suction filter-weight.
- Injection fitting.
- Probe holders (2 units).
- Collars (3) for 50 mm pipe.
- pH 4 and pH 7 calibration solutions.
- Redox calibration solution.
The ideal solution for those seeking an automatic water control and dosing system, compatible with salt chlorinators and professional treatment systems. Its technology allows the chemical balance of the water to be maintained automatically, guaranteeing a pool with crystal-clear, safe and easy-to-maintain water.
Automatic control
PH-REDOX CONTROLLER
Keeping pH and Redox potential within the appropriate levels is essential to ensure the effectiveness of chlorine and avoid problems such as:
- Algae growth.
- Eye and skin irritation.
- Cloudy water.
- Limescale build-up.
- Loss of disinfectant effectiveness.
The Innowater pH-Redox controller continuously measures the water and automatically regulates the dosing required to keep the parameters within the ideal range.

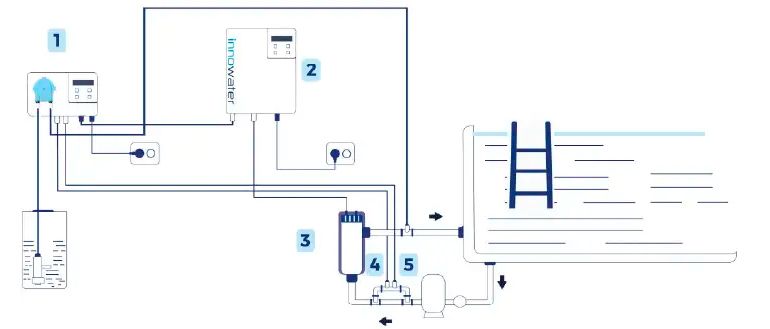

Diagram
PH-REDOX CONTROLLER
The pH-Redox Controller has been designed for simple, safe and efficient installation, both in new pools and renovation projects. Its quick-connect system, together with the sealed power supply and closed enclosure without forced ventilation, facilitates assembly in technical rooms with varying humidity levels.
Spare Parts
PH-REDOX CONTROLLER
As manufacturers of the pH-Redox Controller, Innowater guarantees the availability of original spare parts specifically designed for each model in the range. Using official components ensures maximum compatibility, optimal performance and preservation of the equipment’s service life. All spare parts have been developed to the same quality and control standards as the original product. This maintains electrical safety, chlorine production efficiency and long-term system reliability. And with the official manufacturer’s warranty.
Warranty
PH-REDOX CONTROLLER
Innowater Controller Warranty:
- 3-year warranty on labour and parts at our facilities.
- Warranty not valid for faults not attributable to the product (impact, accident, misuse, incorrect connection).
- Any product that has been tampered with will void the warranty.
- The warranty does not cover call-out charges.
- The customer is responsible for transport to our facilities. If the equipment is under warranty, Innowater will return it at no cost to the address provided.
