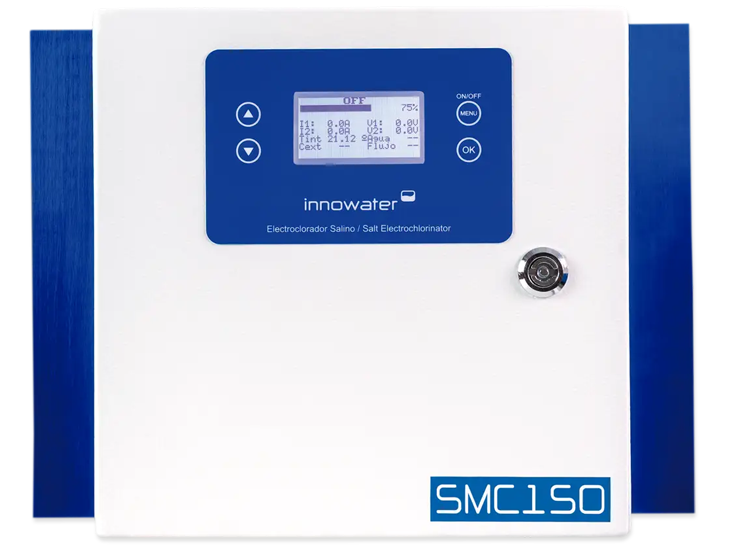

SMC-M Salt Chlorinator
High-performance industrial salt chlorinator with medium capacity
Specifications

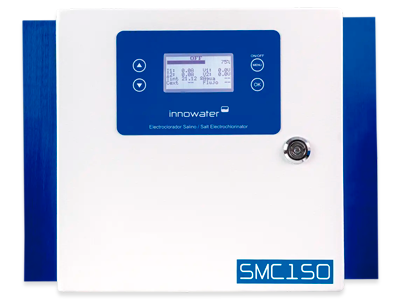

SMC-M Salt Chlorinator
The Innowater SMC-M range has been developed to offer maximum energy efficiency, electronic safety and structural durability, meeting the standards required in professional installations.
- High-performance salt chlorinator for commercial or intensive operation and medium capacity (community pools and small hotels, for example).
- Wall-mounted installation.
- High-performance sealed power supply with overload-protected electronic current control.
- Control electronics and power elements protected in an enclosure without ventilation openings, immune to corrosive atmospheres.
- 316 stainless steel cabinet highly resistant to saline environments.
- Fully programmable chlorinator with accessible operation log.
- Simple configuration interface via keypad and on-screen menus.
- Backlit LCD screen.
- Electrode holder and high-transparency acrylic housing for quick inspection, easily accessible.
- Compact self-cleaning low-maintenance cell.
- Quick nut-free cell electrical connection via connector.
- 4-20 mA signal control (optional).
- Wireless communication for Innowater devices (optional).
- Internet connection via the platform.
(optional)
Models
SMC-M Salt Chlorinator
Currently, the SMC-M range includes 4 different salt chlorinator models, with production ranging from 75 to 180 g Cl2/h. Equipment designed to work in medium-sized, intensively used public pools.
| Model | SMC-M 75 | SMC-M 100 | SMC-M 150 | SMC-M 180 |
| Producción g Cl2 / h | 75 | 100 | 150 | 180 |
| Max. output voltage VDC | 24 | 24 | 24 | 24 |
| Output current A | 12.5 | 8.3 x 2 | 12.5 x 2 | 15 x 2 |
| Power supply VAC | 230 | 230 | 230 | 230 |
| Max. power consumption W | 372 | 420 | 725 | 780 |
| Cell polarity reversal | Programmable | Programmable | Programmable | Programmable |
| Production control | Electronic | Electronic | Electronic | Electronic |
| Salt concentration g/l | 4 – seawater | 4 – seawater | 4 – seawater | 4 – seawater |
| Electrode quality | 15K Premium Grade | 15K Premium Grade | 15K Premium Grade | 15K Premium Grade |
| Min. flow rate m3/h | 10 | 10 | 10 | 10 |
| Max. pressure bar | 1.0 | 1.0 | 1.0 | 1.0 |
| Pressure drop bar | 0.025 | 0.025 | 0.025 | 0.025 |
| Cell pipe mm | 63 | 63 | 63 | 63 |
| Cell installation | Threaded fitting | Threaded fitting | Threaded fitting | Threaded fitting |
| Weight Kg | 15 | 20 | 25 | 38 |
| Packaging dimensions mm | 790 x 650 x 410 | 790 x 650 x 410 | 790 x 650 x 410 | 790 x 650 x 410 |
Diagram
SMC-M Salt Chlorinator
The SMC-M Salt Chlorinator has been designed for simple, safe and efficient installation, both in new pools and renovation projects. Its quick-connect system, together with the sealed power supply and closed enclosure without forced ventilation, facilitates assembly in technical rooms with varying humidity levels.

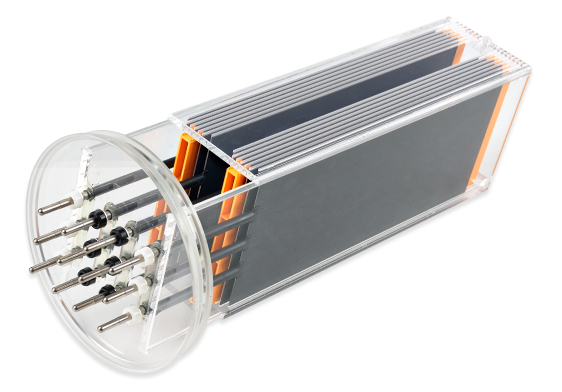

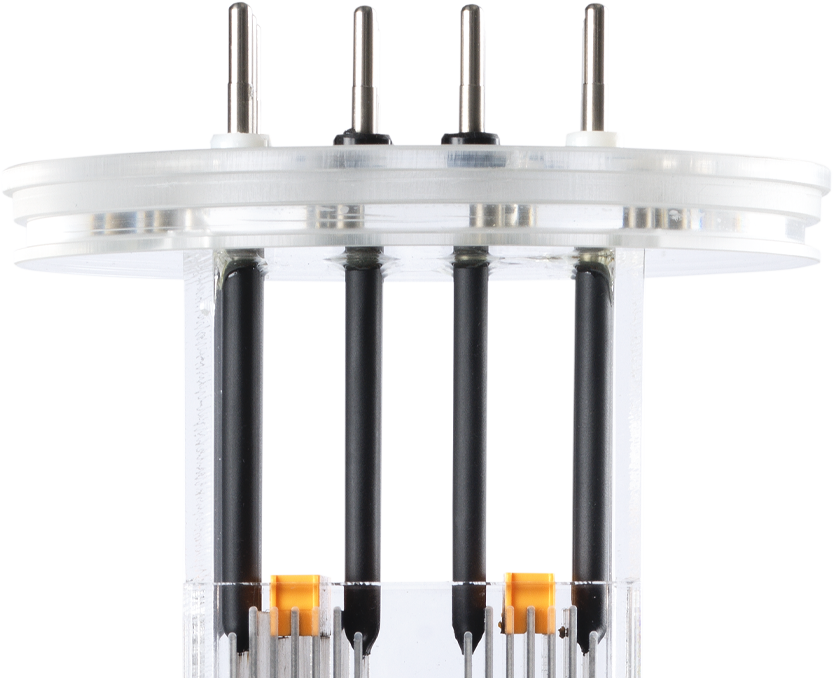

Cell
SMC-M Salt Chlorinator
The SMC-M Salt Chlorinator cell has been designed to offer maximum efficiency in chlorine production with minimal maintenance. Its compact bipolar design optimises electrochemical performance, reduces energy consumption and promotes greater electrode durability.
Diagram
MONITOR CONTROLLER
The Monitor Controller has been designed for simple, safe and efficient installation, both in new pools and renovation projects. Its control and dosing system aims to optimize pool maintenance and efficiency with easy assembly.

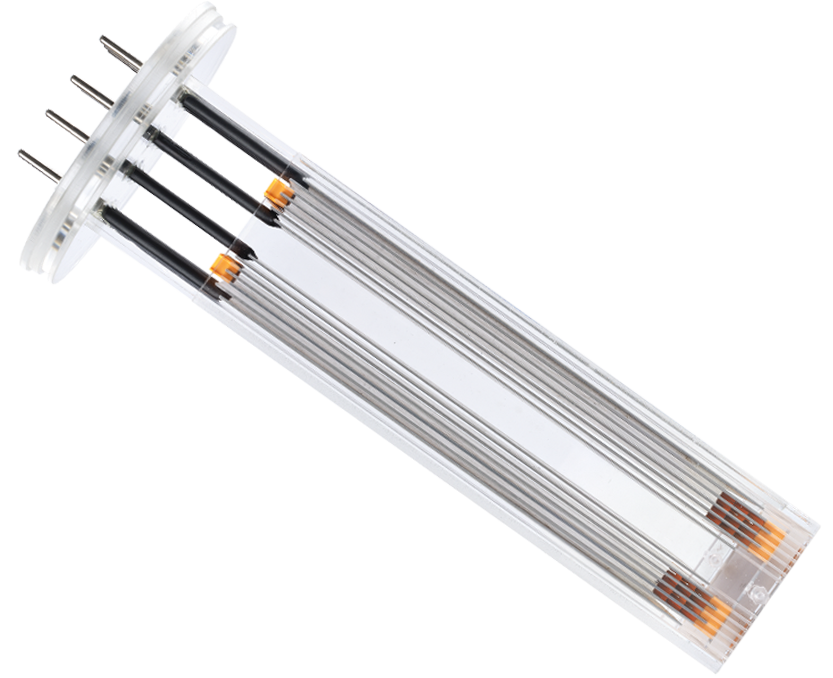

Spare Parts
SMC-M Salt Chlorinator
As manufacturers of the SMC-M Salt Chlorinator, Innowater guarantees the availability of original spare parts specifically designed for each model in the range. Using official components ensures maximum compatibility, optimal performance and preservation of the equipment’s service life. All spare parts have been developed to the same quality and control standards as the original product. This maintains electrical safety, chlorine production efficiency and long-term system reliability. And with the official manufacturer’s warranty.
Warranty
SMC-M Salt Chlorinator
Industrial Salt Chlorinator Warranty:
- 3-year warranty on labour and parts at our facilities.
- Warranty not valid for faults not attributable to the product (impact, accident, misuse, incorrect connection).
- Any product that has been tampered with will void the warranty.
- The warranty does not cover call-out charges.
- The customer is responsible for transport to our facilities. If the equipment is under warranty, Innowater will return it at no cost to the address provided.
