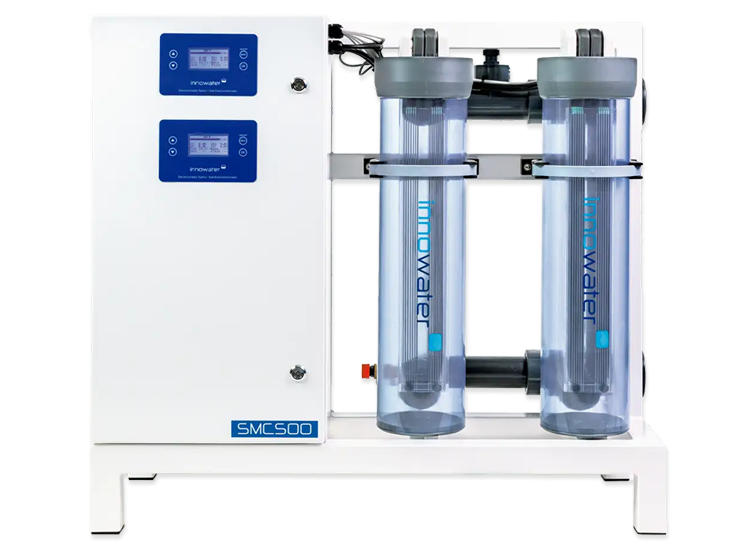

SMC-H Salt Chlorinator

High-performance industrial salt chlorinator with high capacity

The Innowater SMC-H Industrial Salt Chlorinator range includes state-of-the-art equipment designed for use in large, public, and high-usage pools. All aimed at achieving the most efficient and reliable water disinfection.

More info

SMC-H SALT CHLORINATOR

Specifications

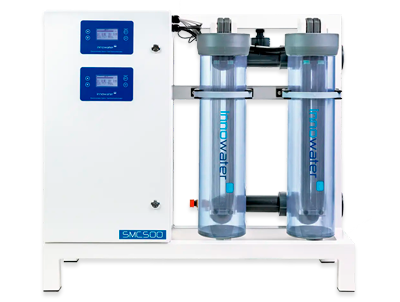

SMC-H Salt Chlorinator

The Innowater SMC-H range has been developed to offer maximum energy efficiency, electronic safety and structural durability, meeting the standards required in professional installations.

High-performance salt chlorinator for intensive high-capacity operations (public pools, hotels, sports centres).
Compact skid installation with integrated cells.
High-performance sealed power supply with overload-protected electronic current control.
Control electronics and power elements protected in an enclosure without ventilation openings, immune to corrosive atmospheres.
316 stainless steel cabinet highly resistant to saline environments.
Fully programmable chlorinator with accessible operation log.
Backlit LCD screen.
Electrode holder and high-transparency acrylic housing for quick inspection, easily accessible.
Compact self-cleaning low-maintenance cells.
Quick nut-free cell electrical connection via connector.
4-20 mA signal control (optional).
Wireless communication for Innowater devices (optional).
Internet connection via the platform. (optional)

Request Information

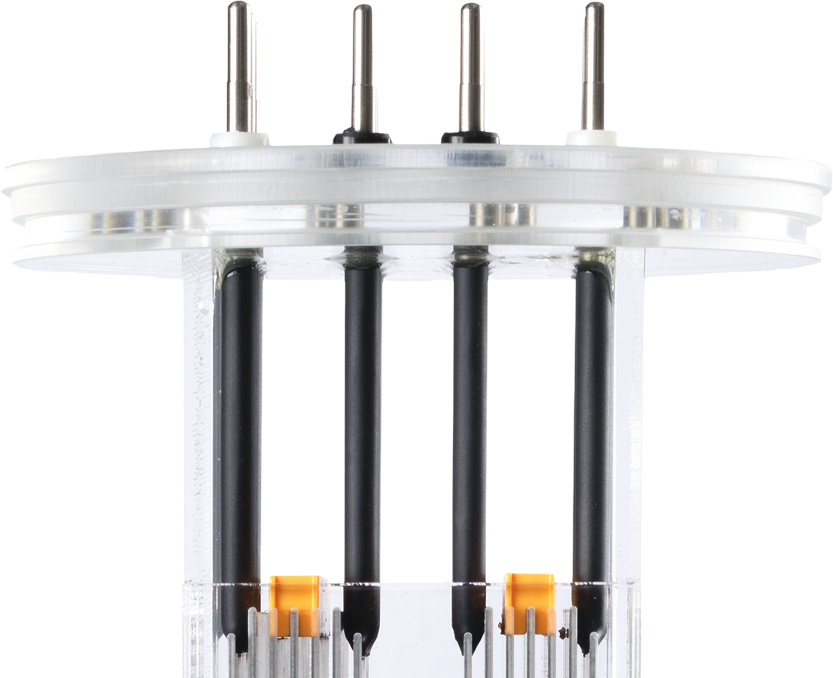

detail electrolytic cell salt chlorinator SMC-H

Models
SMC-H Salt Chlorinator

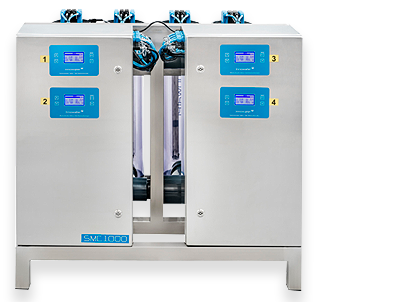

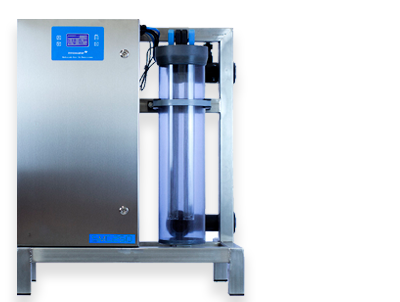

The Innowater SMC-H industrial salt chlorinator range comprises 5 different models, with production ranging from 250 to 1000 g Cl2/h. Equipment designed for optimal water disinfection in large-scale, public and intensively used pools.

Model*	SMC-H 250	SMC-H 300	SMC-H 500	SMC-H 750	SMC-H 1000
Producción g Cl₂ / h	250	300	500	750	1000
Max. output voltage VDC	24	24	24	24	24
Output current A	21 x 2	25 x 2	21 x 4	21 x 6	21 x 8
Power supply VAC	230	230	230	230	230
Max. power consumption kW	1,12	1,34	2,24	3,36	4,45
Cell polarity reversal	Programmable	Programmable	Programmable	Programmable	Programmable
Production control	Electronic	Electronic	Electronic	Electronic	Electronic
Salt concentration g/l	4 – seawater	4 – seawater	4 – seawater	4 – seawater	4 – seawater
Electrode quality	15K Premium Grade	15K Premium Grade	15K Premium Grade	15K Premium Grade	15K Premium Grade
Min. flow rate m³/h	15	15	30	45	60
Max. pressure bar	1.0	1.0	1.0	1.0	1.0
Pressure drop bar	0.05	0.05	0.1	0.15	0.2
Cell pipe mm	63	63	75	90	110
Cell installation	Threaded fitting	Threaded fitting	Threaded fitting	Threaded fitting	Threaded fitting
Weight Kg	130	140	150	180	200
Packaging dimensions mm	900x605x1155	900x605x1155	1150x610x1155	1185x985x1130	1185x985x1130

* Consult for other production capacities.

Diagram
SMC-H Salt Chlorinator

The SMC-H Salt Chlorinator has been designed for simple, safe and efficient installation, both in new pools and renovation projects. Its quick-connect system, together with the sealed power supply and closed enclosure without forced ventilation, facilitates assembly in technical rooms with varying humidity levels.

Discover our Cell

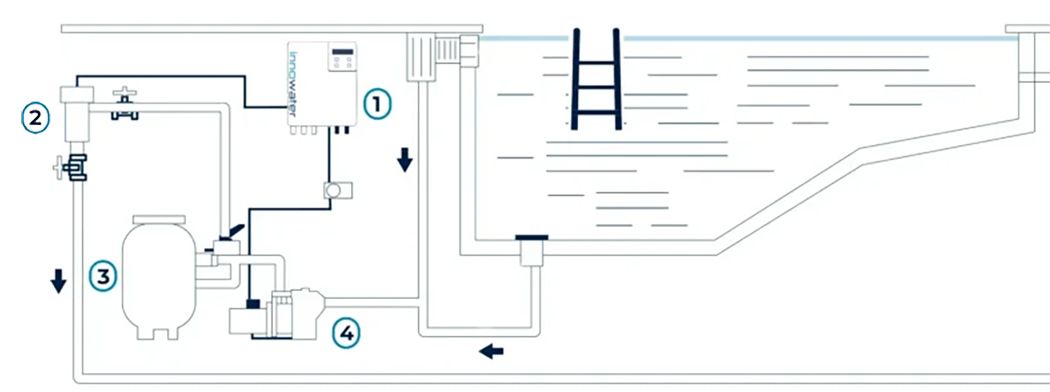

1. Salt chlorinator — 2. Cell — 3. Filter — 4. Pump motor

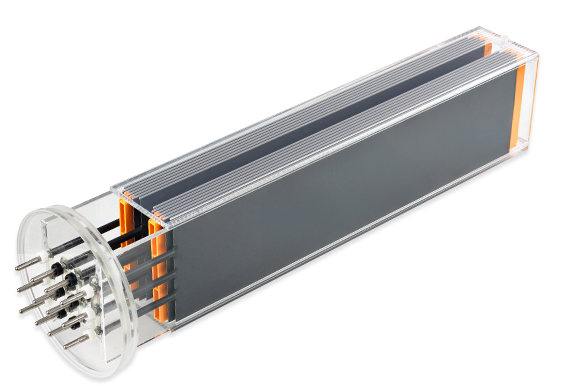

Cell
SMC-H Salt Chlorinator

The SMC-H Salt Chlorinator cell has been designed to offer maximum efficiency in chlorine production with minimal maintenance. Its compact bipolar design optimises electrochemical performance, reduces energy consumption and promotes greater electrode durability.

Discover the pH and Redox Options

Monitor Controller
for SMC-H Salt Chlorinator

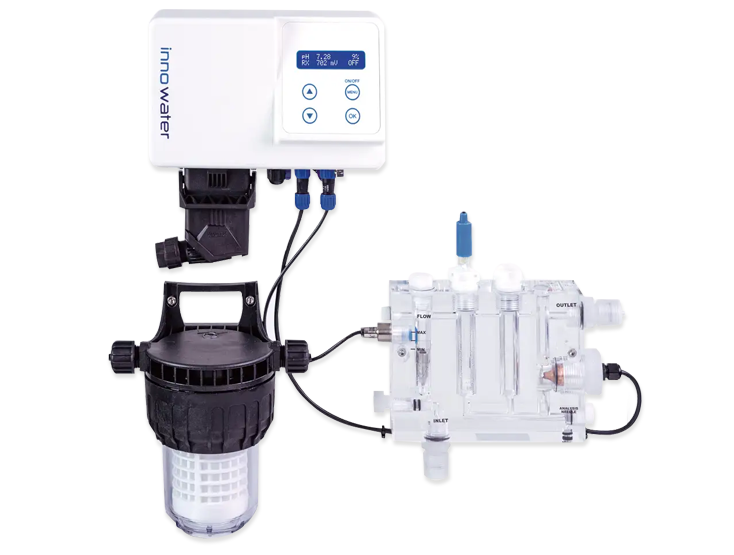

Professional chlorine and pH measurement and control system. The Innowater Monitor Controller for pools is an advanced system designed for the automatic measurement and control of free chlorine and pH in pool water. This equipment enables continuous monitoring of key water quality parameters and adjustment of the dosing required to maintain effective disinfection.

Professional monitoring for public pools

The Innowater Monitor system provides an advanced automatic measurement and control solution, capable of analysing with great precision: free chlorine, pH and other key water quality parameters.

Easy installation
and calibration

Wireless
pH control

Internet
connection

Diagram
MONITOR CONTROLLER

The Monitor Controller has been designed for simple, safe and efficient installation, both in new pools and renovation projects. Its control and dosing system aims to optimize pool maintenance and efficiency with easy assembly.

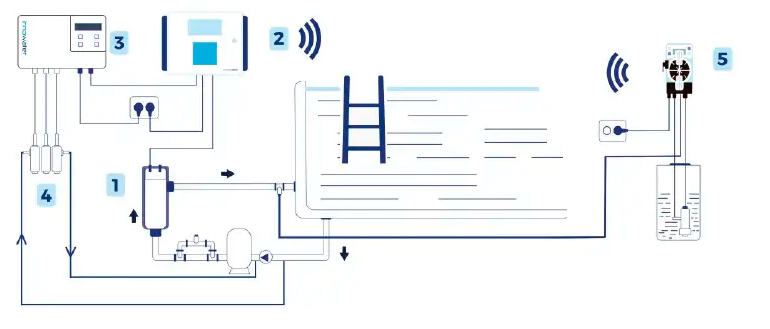

1. Cell — 2. Salt chlorinator — 3. Innowater Monitor — 4. Probe holder — 5. Pulse pump

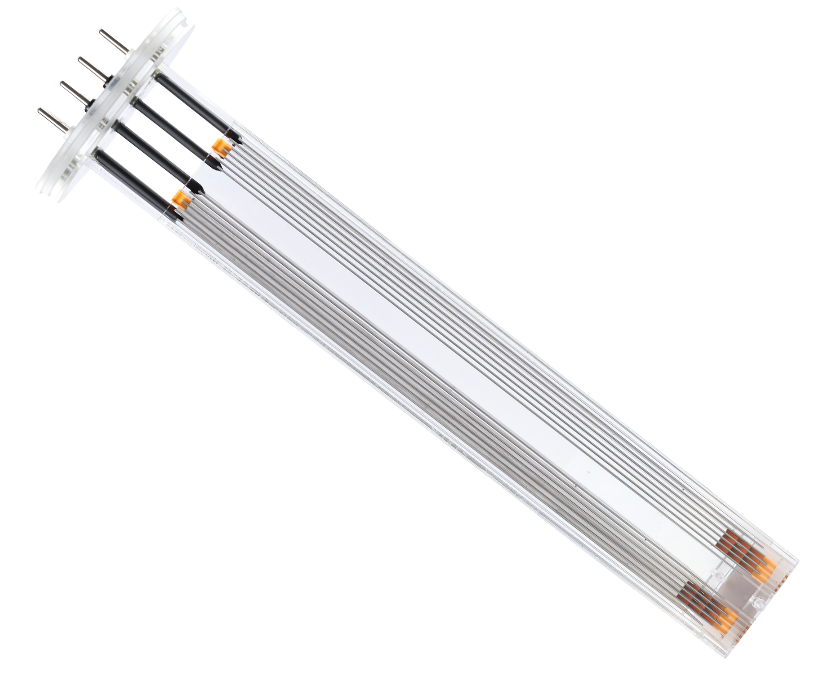

electrolytic cell replacement for SMC-H salt chlorinator

Spare Parts
SMC-H Salt Chlorinator

As manufacturers of the SMC-H Salt Chlorinator, Innowater guarantees the availability of original spare parts specifically designed for each model in the range. Using official components ensures maximum compatibility, optimal performance and preservation of the equipment’s service life. All spare parts have been developed to the same quality and control standards as the original product. This maintains electrical safety, chlorine production efficiency and long-term system reliability. And with the official manufacturer’s warranty.

More Information

Warranty
SMC-H Salt Chlorinator

Industrial Salt Chlorinator Warranty:

3-year warranty on labour and parts at our facilities.
Warranty not valid for faults not attributable to the product (impact, accident, misuse, incorrect connection).
Any product that has been tampered with will void the warranty.
The warranty does not cover call-out charges.
The customer is responsible for transport to our facilities. If the equipment is under warranty, Innowater will return it at no cost to the address provided.
