SMC Salt Chlorinator
Compact high-performance residential salt chlorinator
Specifications

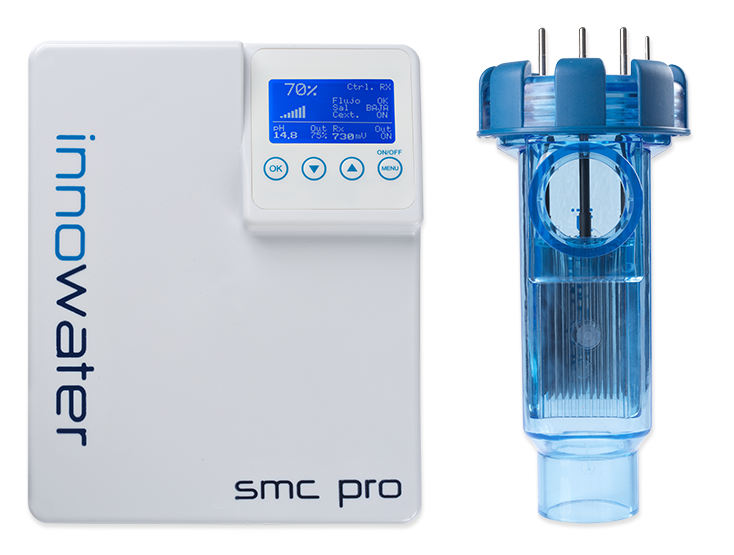

SMC Salt Chlorinator
The Innowater SMC range has been developed to offer maximum energy efficiency, electronic safety and structural durability, meeting the standards required across all types of private installations.
- High-performance sealed power supply.
- Closed enclosure without forced ventilation.
- LCD screen with a user-friendly menu system.
- Easy-disconnect water-resistant rubber cell connector.
- Overload-protected electronic power control.
- Compact low-maintenance bipolar cell.
- Programmable polarity reversal.
- Transparent electrode holder and housing for easy access and quick inspection.
- Quick nut-free cell electrical connection.
- Internet connection via the platform
(optional)
Models
SMC Salt Chlorinator
The Innowater SMC range is available in different models to adapt to the specific needs of each pool. Each version maintains the same robust technology, protected electronics and optimised design, varying in production capacity and configuration to suit the water volume and operational requirements.
| Model |
SMC10 |
SMC15 |
SMC20 |
SMC30 |
SMC40 |
SMC50 |
|---|---|---|---|---|---|---|
| Producción g Cl2 / h | 10 | 15 | 20 | 30 | 40 | 50 |
| Max. m3 pool T < 25oC | 30 | 50 | 90 | 150 | 180 | 200 |
| Max. m3 pool T > 25oC | 20 | 40 | 75 | 120 | 150 | 160 |
| Max. output voltage VDC | 24 | 24 | 24 | 24 | 24 | 24 |
| Output current A | 1.5 | 2.5 | 3.0 | 5.0 | 6.0 | 8.5 |
| Power supply VAC | 230 | 230 | 230 | 230 | 230 | 230 |
| Max. power consumption W | 50 | 60 | 90 | 130 | 170 | 210 |
| Cell polarity reversal | Programmable | Programmable | Programmable | Programmable | Programmable | Programmable |
| Production control | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic |
| Salt concentration g/l | 4 – seawater | 4 – seawater | 4 – seawater | 4 – seawater | 4 – seawater | 4 – seawater |
| Electrode quality | 10K Premium Grade | 10K Premium Grade | 10K Premium Grade | 10K Premium Grade | 10K Premium Grade | 10K Premium Grade |
| Min. flow rate m3/h | 4 | 4 | 4 | 6 | 6 | 10 |
| Max. pressure bar | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Pressure drop bar | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.030 |
| Cell pipe mm | 50 | 50 | 50 | 50 | 50 | 63 |
| Cell installation | PVC glue | PVC glue | PVC glue | PVC glue | PVC glue | Threaded fitting |
| Weight Kg | 6 | 6 | 6 | 6 | 6 | 12 |
| Packaging dimensions mm | 600 x 360 x 150 | 600 x 360 x 150 | 600 x 360 x 150 | 600 x 360 x 150 | 600 x 360 x 150 | 655 x 650 x 230 |
Diagram
SMC Salt Chlorinator
The SMC Salt Chlorinator has been designed for simple, safe and efficient installation, both in new pools and renovation projects. Its quick-connect system, together with the sealed power supply and closed enclosure without forced ventilation, facilitates assembly in technical rooms with varying humidity levels.

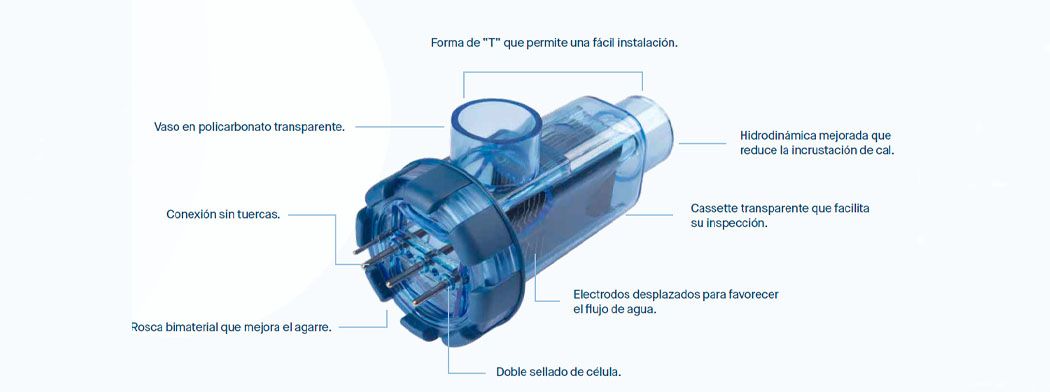

Cell
SMC Salt Chlorinator
The SMC Salt Chlorinator cell has been designed to offer maximum efficiency in chlorine production with minimal maintenance. Its compact bipolar design optimises electrochemical performance, reduces energy consumption and promotes greater electrode durability.
Wireless pH Option
This option enables pH regulation through a probe connected to the chlorinator and a wireless acid dosing pump that can be installed even outside the technical room.
With this option you can regulate the pH without installing an additional device, and protect the electronic equipment by keeping the acid away from it.
Features
- Long-range wireless pH dosing pump
- Peristaltic pump head easy to disassemble and replace
- Remote installation away from chlorinator and technical room to avoid acid damage
- Very easy calibration and configuration via the chlorinator’s LCD screen
- Variable speed motor
- Flow rate: 1.5 l/h. Pressure 1.5 bar
- Manual priming button
- Programmable dosing alarm and delay
- pH range 0-14
- pH scale precision 0.01
- Two-point pH calibration
- Proportional regulation
- BNC probe connector
- Internet connection via the platform
(optional)
Included elements
- Wireless peristaltic pump
- pH probe
- Acid suction tube
- Acid injection tube
- Suction filter-weight
- Injection fitting
- Probe holder
- Collars (2) for 50mm pipe
- pH4 and pH7 calibration solutions
Redox Control Option
This option allows chlorine production to be limited according to the redox potential of the water without the need for an additional device, thanks to a probe connected to the chlorinator.
The setpoint configuration and probe calibration are carried out very simply through the chlorinator’s dedicated menus.
Features
- Redox range 0-1000mV
- Redox scale precision 1 mV
- Single-point redox calibration
- Proportional regulation
- BNC probe connector
- Internet connection via the platform
Included elements
- Redox probe
- Probe holder
- Collar for 50 mm pipe
- Redox calibration solution

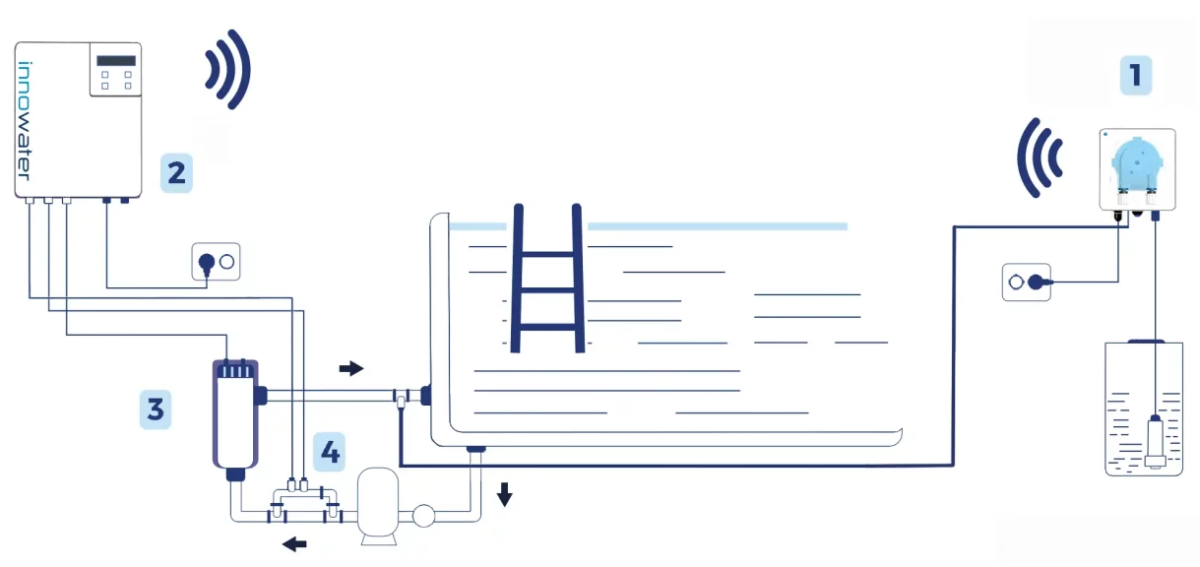

pH and Redox Options installation diagram
2. Cell
3. pH and RX sensor
4. Wireless pH pump

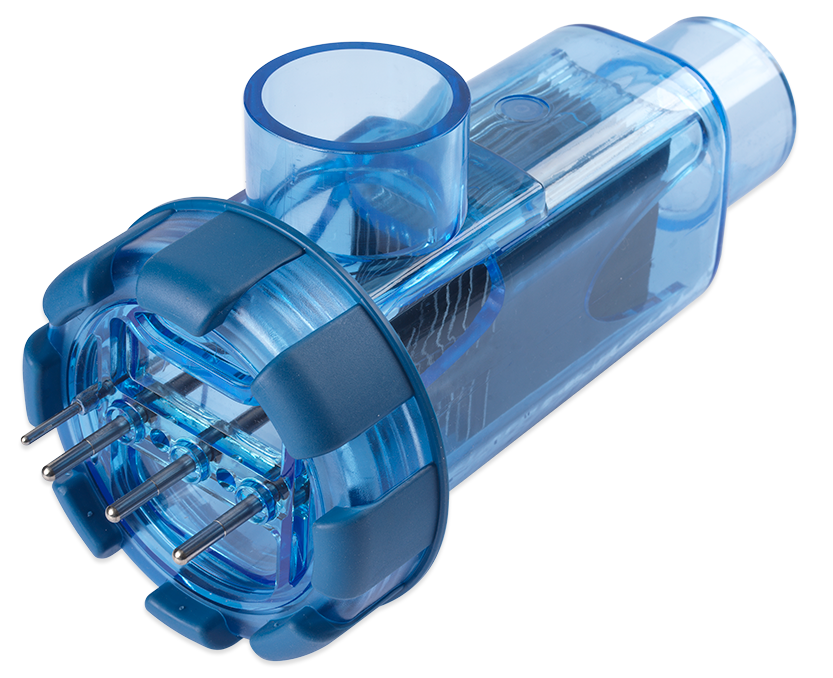

Spare Parts
SMC Salt Chlorinator
As manufacturers of the SMC Salt Chlorinator, Innowater guarantees the availability of original spare parts specifically designed for each model in the range. Using official components ensures maximum compatibility, optimal performance and preservation of the equipment’s service life. All spare parts have been developed to the same quality and control standards as the original product. This maintains electrical safety, chlorine production efficiency and long-term system reliability. And with the official manufacturer’s warranty.
Warranty
SMC Salt Chlorinator
Domestic Salt Chlorinator Warranty:
- 3-year warranty on labour and parts at our facilities.
- Warranty not valid for faults not attributable to the product (impact, accident, misuse, incorrect connection).
- Any product that has been tampered with will void the warranty.
- The warranty does not cover call-out charges.
- The customer is responsible for transport to our facilities. If the equipment is under warranty, Innowater will return it at no cost to the address provided.
